Dedication to Quality at a Fair Price.
The range of Leisure Time pool pumps have been purposefully designed to provide maximum performance and corrosion resistance at a realistic cost.
Ideal for small to medium domestic swimming pools.
| FEATURES |
|---|
| 1P55 (TEFC) motor Totally enclosed fan cooled motor which means a cooler running motor that will last longer and with IP55 protection from dust and water, your pump is preserved against the elements for many years. |
| Electrical approvals Rest easy knowing your Leisure Time pool pump has passed all stringent Australian Standards AS/NZS 3136:2001 for safety and is approved for installation within the wetted zone of the pool area. Approvals V99108, V02301, V02302. |
| Elevated motor foot Incorporating an elevated mount into the pump design keeps moisture well away from the motor. |
| Double coated endshield Unique double zinc plated cast iron endshield for better corrosion protection extending the life of the pump. |
| Large hair and lint pot with see through lid Easy to clean large hair and lint pot with a clear lid so you can check at a glance whether or not it is full. |
| Low friction lint pot 0-ring Having a low friction 0-ring on the lint pot means you only need to tighten the lid by hand. No tools are necessary and because you only tighten by hand, removing the lid is also a simple task. |

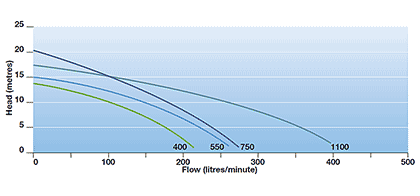

| PERFORMANCE |
|---|
 |

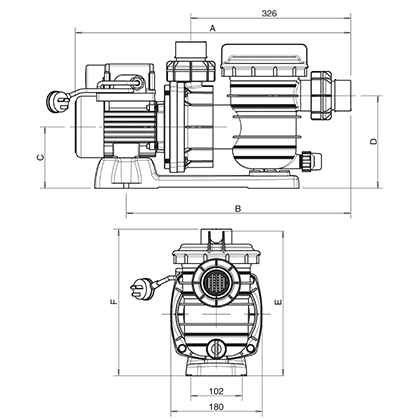

| DIMENSIONS |
|---|
 |
| DIMENSIONS TABLE (MM) | ||||||
|---|---|---|---|---|---|---|
| Model | A | B | C | D | E | F |
| LTP400 | 556 | 454 | 91 | 152 | 254 | 260 |
| LTP550 | 578 | 454 | 91 | 152 | 254 | 260 |
| LTP750 | 578 | 454 | 91 | 152 | 254 | 260 |
| LTP1100 | 587 | 448 | 91 | 152 | 254 | 260 |
Note: Dimension ‘E’ an additional 160mm clearance height required above the pump to remove strainer basket for maintenance and cleaning purposes. Unless otherwise specified, all dimensions in mm. Fixing holes accept 8mm fasteners.
| SPECIFICATIONS | ||||||
|---|---|---|---|---|---|---|
| Model | Motor Kw (hp) | Supply Voltage | Phase | Full Load Current (A) | Full Rotor Current (A) | Capacitor mfd |
| LTP400 | 0.4 (1/2) | 230 | 1 | 2.7 | 10 | 12 |
| LTP550 | 0.5 (3/4) | 230 | 1 | 3.5 | 17 | 20 |
| LTP750 | 0.75 (1) | 230 | 1 | 4.3 | 17 | 20 |
| LTP1100 | 1.1 (11/2) | 230 | 1 | 5.4 | 23 | 22 |
| Model | Sound Power Level | Supply Cord Length | Net Weight | Packed Weight | Carton Dims L x W x H (mm) |
| LTP400 | 60 | 2 | 8 | 10 | 580 x 185 x 315 |
| LTP550 | 59 | 2 | 8 | 10 | 580 x 185 x 315 |
| LTP750 | 64 | 2 | 10 | 12 | 580 x 185 x 315 |
| LTP1100 | 65 | 2 | 10 | 12 | 615 x 210 x 305 |
Disclaimer: Every endeavour has been made to publish the correct details. No responsibility will be taken for errors, omissions or changes in product specifications. All performance data taken at sea level.
